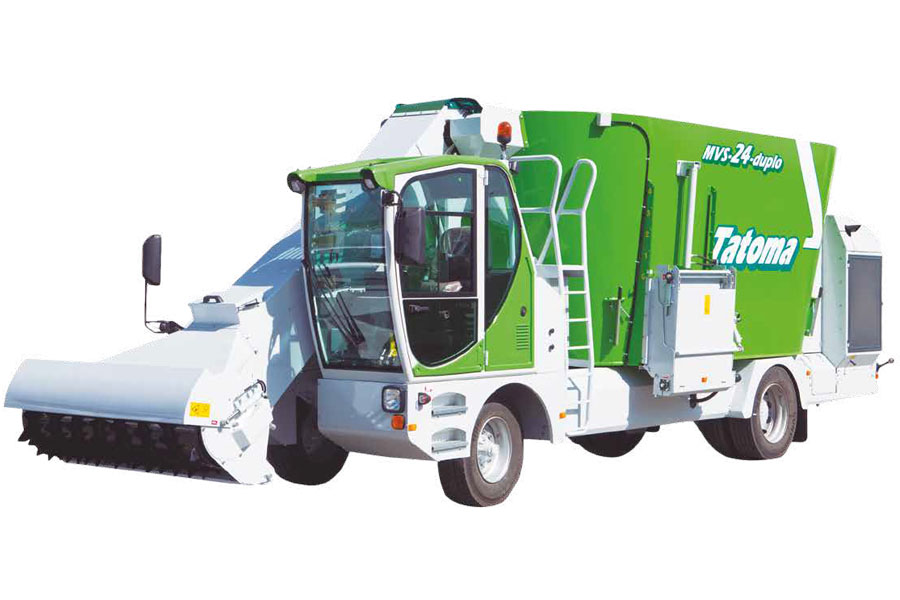

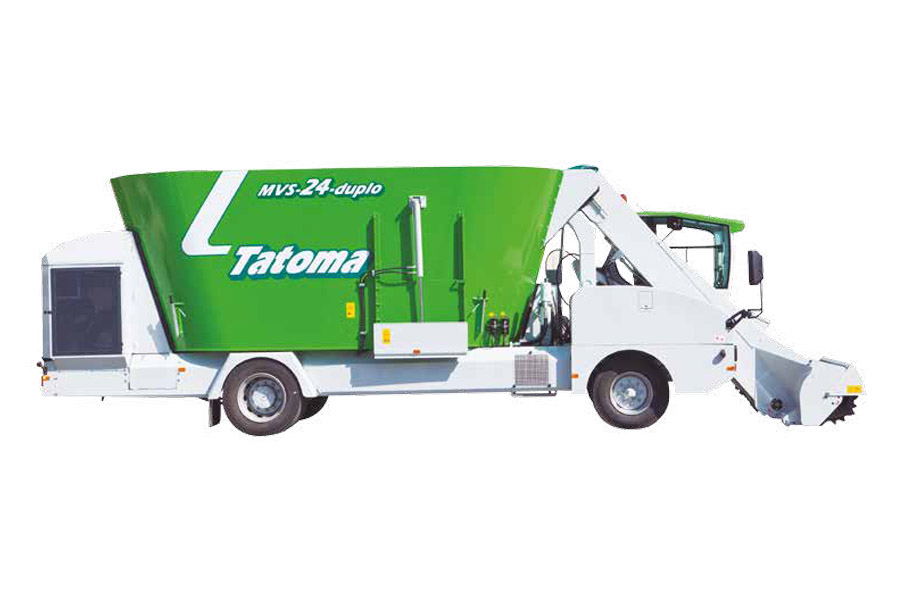

Vertical Self-Propelled Dual-Auger Mixer SUPRAMIX
Designed for maximum productivity, the SUPRAMIX vertical self-propelled dual-auger mixer will adapt to any type
of work no matter how demanding the conditions of the farm. With over 40 years of experience in manufacturing mixing systems, TATOMA can guarantee top performance from their mixers and specifically its self-propelled machines that combine efficiency and robustness to meet the needs of the most demanding farmer. The SUPRAMIX model is ideal
for the requirements of a medium-sized operation and can prepare 200 to 250 mix rations (depending on the model) in only a few minutes.
Excellent cab visibility
Thanks to the excellent cab design, the farm operator will never lose sight of the cattle. Made of steel with rust proofing treatment, it is equipped with a safety windscreen and a pneumatic seat. All-around visibility is excellent thanks to the windscreen’s negative sloping angle, partially glazed roof and windscreen. The front and rear working lights are part of the standard equipment, and can be optionally supplemented with cameras inside the tub, on the discharge doors and for reversing. The screen on the weighing system in the cab allows the operator to accurately control the mixing and discharge operations. The main functions of the machine are controlled safely via messages and warning lights on the side control panel.
Silage cutter

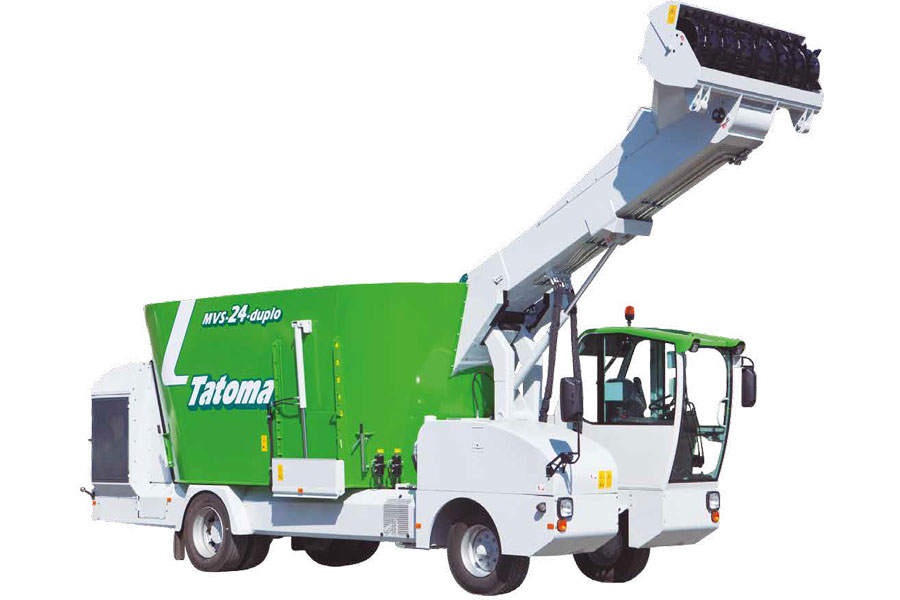

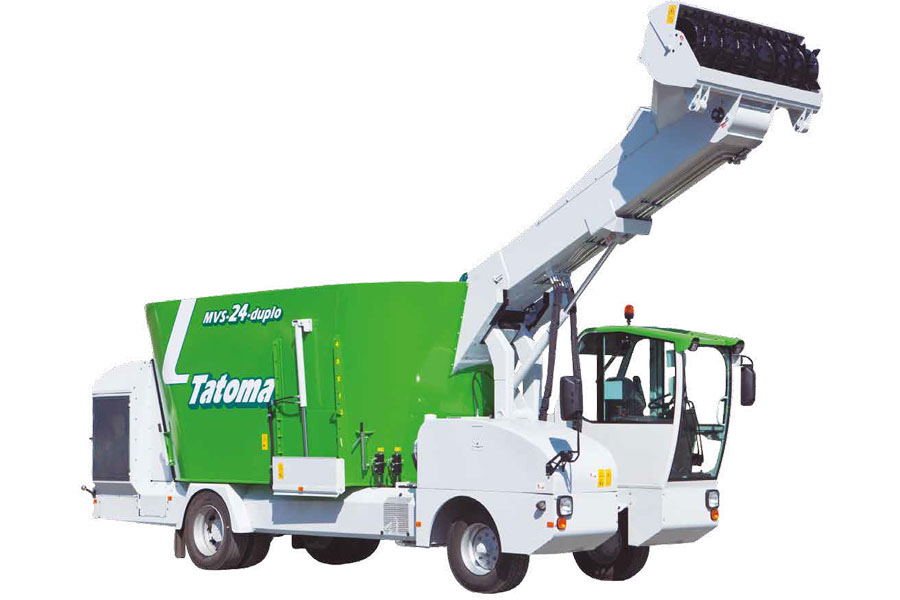

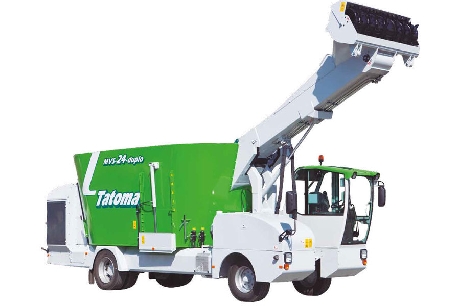

Ingredients enter through a dual-motor silage cutter. The 2000 mm cutter drum (2200 mm optional) ensures excellent cutting capacity thanks to its numerous spiral-mounted blades. The tub can be fully loaded in minutes by means of a rubber conveyor belt. All Tatoma self-propelled mixers are fitted with a hydraulic, anti-rupture hose system with a pressure regulator on lowering the cutter.
The cutter rotation direction is reversible thanks to the two electric drive pedals that allow more precise control of the load, as loading can be stopped and the excess product returned on reaching the required amount.
Auger
The auger design has taken into account the different products, fibre types, humidity levels etc, in use. Tatoma has developed an auger capable of working with any type of mix to ensure maximum homogeneity. At the same time the combination of the pitch of the spirals and their diameter guarantees perfect product flow, fast and efficient cutting and therefore low fuel consumption.
Engine
The turbo diesel engine is located at the rear of the machine. The transmission of the movement to the wheels is performed through a closed hydrostatic circuit, driving both axles by means of a variable displacement pump and two piston engines. The hydraulic system includes a flow sharing system between the hydraulic motors to overcome difficult traction conditions.
Turning angle
Front-axle levelling is performed by a hydraulic suspension. The rear-axle is connected by a chassis with leaf spring and rocker suspension. The first axle is for steering and driving, the second for driving and steering, allowing the machine exceptional manoeuvrability despite its size. The maximum turning angle is 40°.
